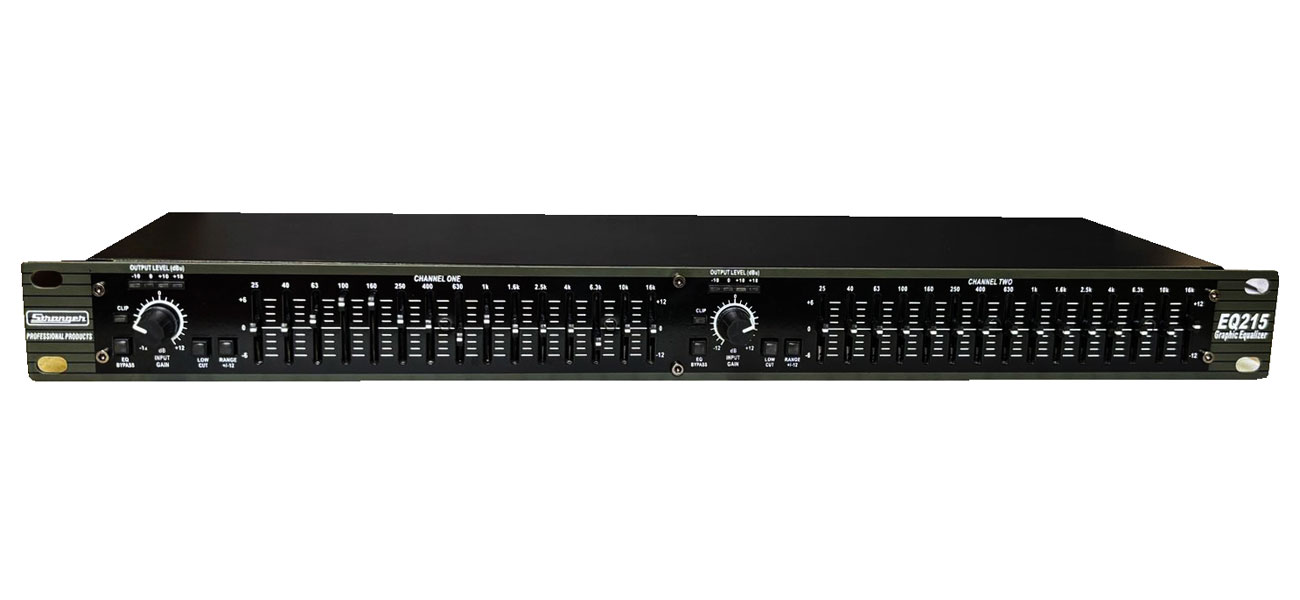

EQ215

Graphic Equalizer
  • Dual 15 band EQ. with ± 12 dB.
  • Output Level LEDs.
  • 25 Hz to 16 KHz effective equalization range.
  • Low Cut Activates the 50 Hz 12 db / Octave High-Pass Filter.
  • Select Either ± 6 db or ± 12 db Boost / Cut Range.
  • Clip LED Light for Excessive Gain & Excessive Frequency.
  • By-Pass Switch with Status LED.

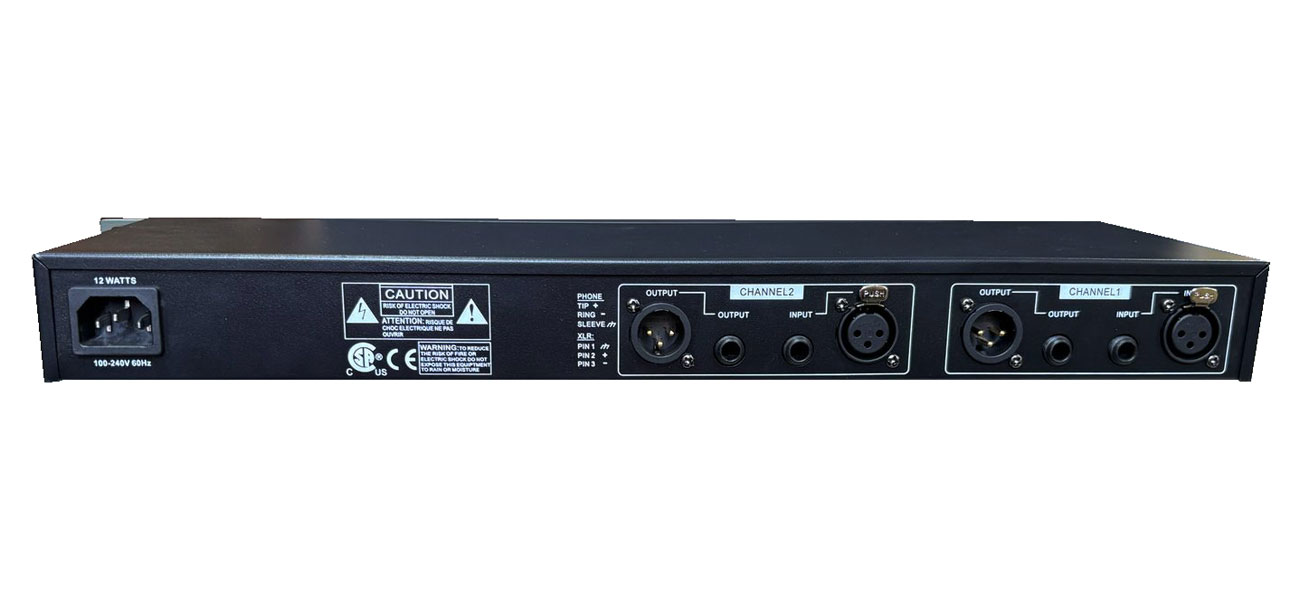

  • XLR and ¼ inch inputs.
  • Outputs for balanced and Un-balanced Operation.
  • Power Supply: AC 220v 50 Hz.
  • Dimension: 482 (W) x 152 (D) x 44 (H) mm.
  • Weight: 1.850 kg. (approx.)
