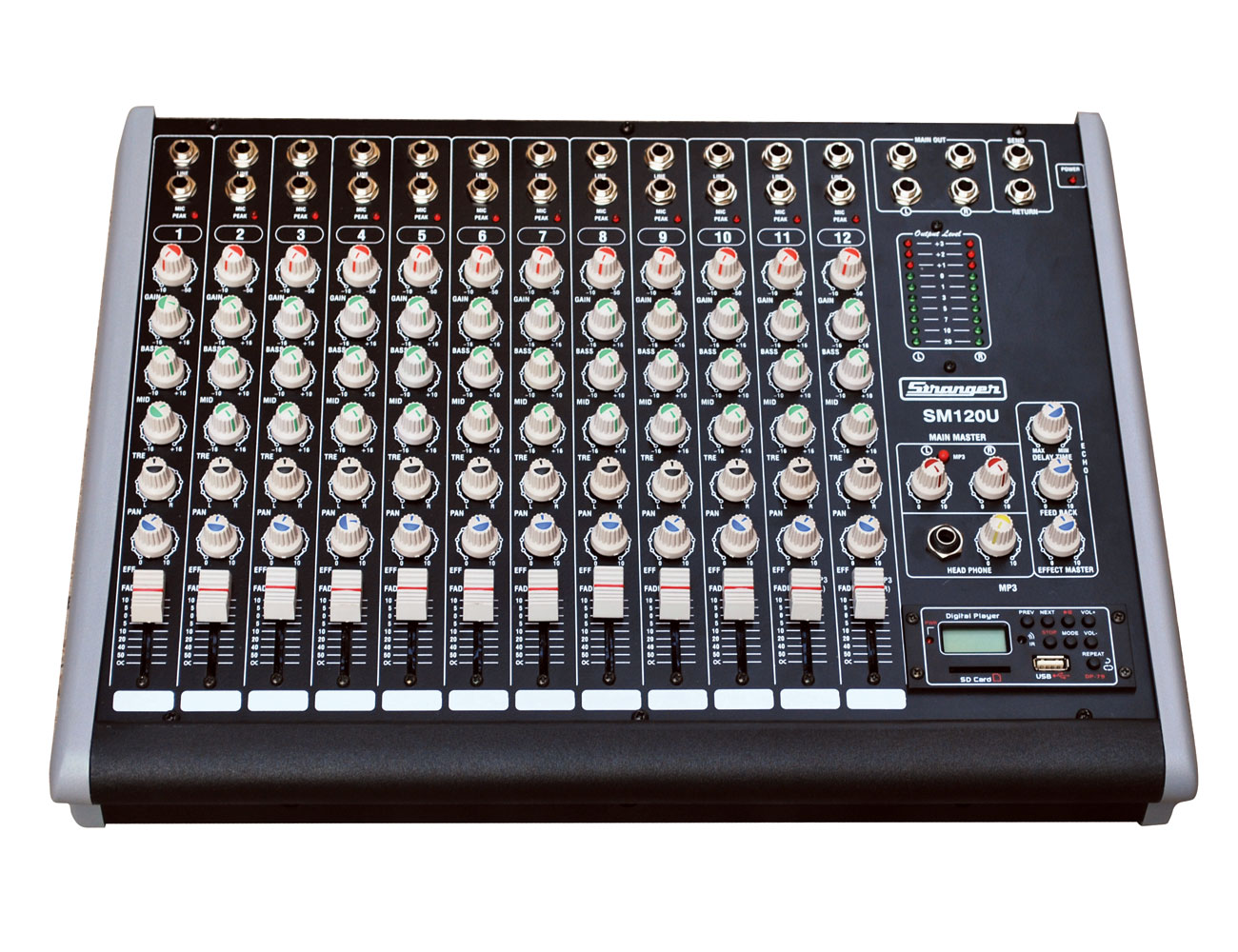

SM120U/SM80U

12/8 Channel Audio Mixer with USB & Recording system
  • Un-Balanced (Input / Output). | Frequency Response 25 Hz – 20 KHz.
  • Digital Echo 20 – 400 mili Sec. | Fader 30 mm for each Channel.
  • Mono Line Input 10K Ohms.
  • Mic. Input 2K Ohms. Gain: -10 dB to -50 dB. S/N Ratio 70 dB.
  • Distortion 0.01%. | Tone Control: Bass ±16 dB, Mid ±10 dB & Treble ±16 dB.
  • Effect Return: -30 dB Max. Effect Send: 5.5V Max.
  • Channel Signal Indication Clip LED. Main Output Metering 10 segment LED.
  • MP3 Player with Recording | USB / MMC Card Slot with LCD Display & Remote.
  • Power Supply: 11VA / 9VA Max @ AC 220V / 50 Hz (External Adapter).
  • Dimension: 465 (W) x 355 (D) x 105 (H) mm. | Weight: 4.910 kg. (approx.)
  • Dimension: 355 (W) x 355 (D) x 105 (H) mm. | Weight: 3.980 kg. (approx.)
