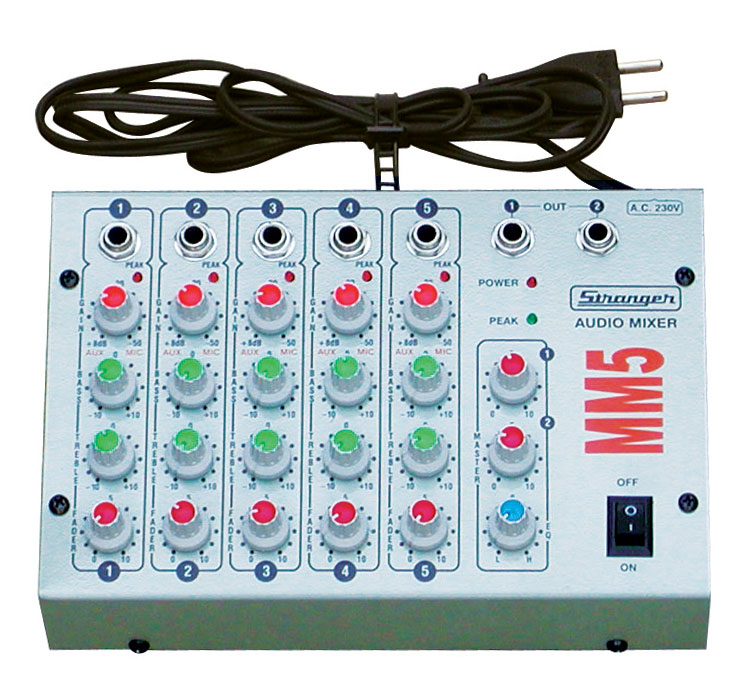

Audio Mixer

MM5


MM5

Specifications:

  • 5 Channels Audio Mixer.
  • Frequency 25 Hz – 25 KHz.
  • Input Gain: – 50 dB to 8 dB gain range with overdrive indication.
  • Output 0 dBm / 17 dBm (775mv / 5.5v)
  • Equalization: Bass & Treble + 10 dB each channel and Master Equalization.
  • Controls: Gain, Eq., Fader.
  • Power Supply: AC 220V 50 Hz.
  • Dimension: 220 (W) x 150 (D) x 65 (H) mm.
  • Weight: 1.200Kgs.(approx.)
