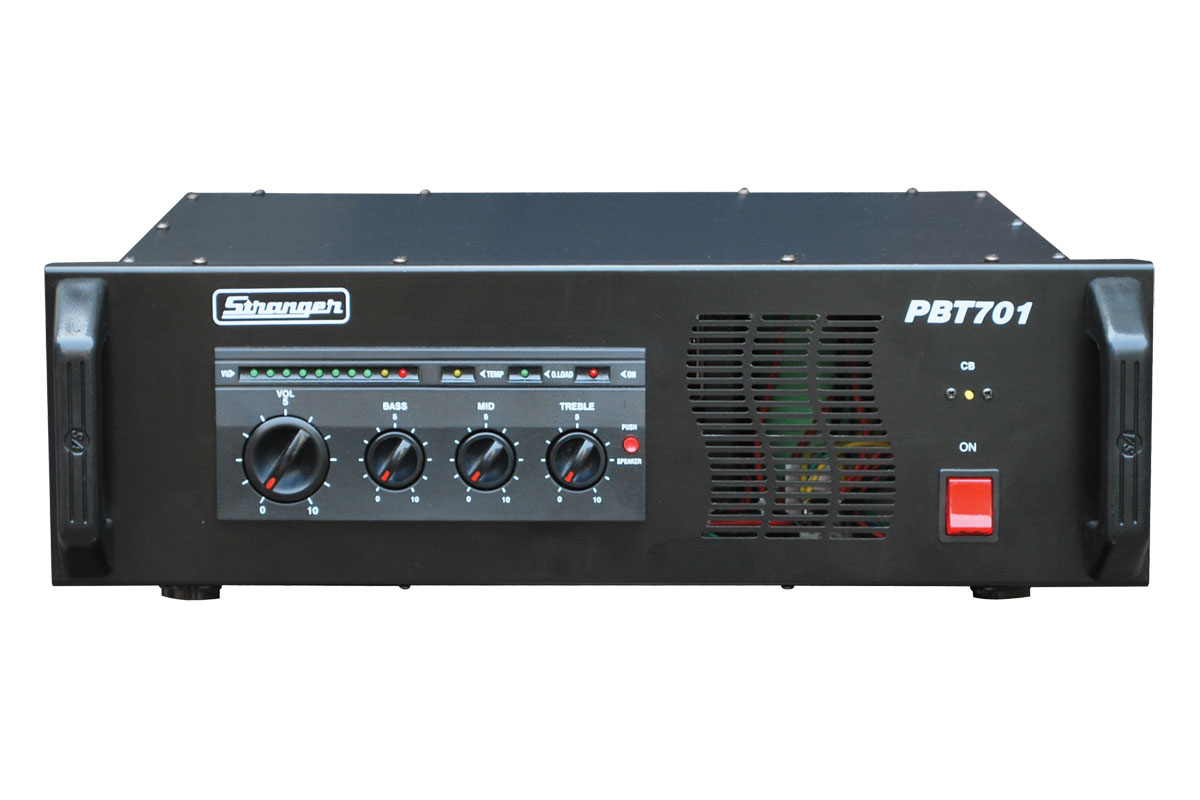

Mono Amplifier

PBT701


PBT701

Specifications:

  • 700 Watts RMS Output at 2 / 4 Ohms.70 & 100 Volts.
  • 70 / 100 Volts.
  • Output Level LED.
  • 3 Way Tone Control.
  • Horn / Speaker Switch.
  • Force Cooling.
  • Input Line 1V / 10K Ohms & Mic. 0.8 mv.
  • Protection: AC Bi-Metal Circuit Breaker, Short Circuit & Over Temperature with Visual LED Indication.
  • Power Supply: AC 220v 50 Hz.
  • Dimension: 483 (W) x 460 (D) x 155 (H) mm.
  • Weight: 25.600 kg. (approx.)
