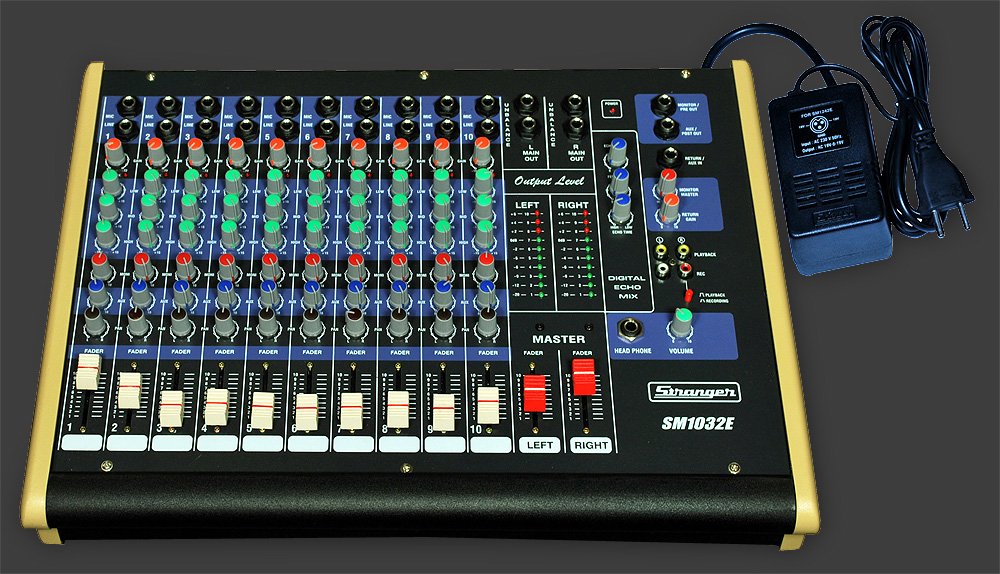

SM1032E (10 Channels Audio Mixer)


1

Specifications:

  • Un-Balanced (Input & Output) Echo Mixer.

  • Frequency Response 25 Hz - 20 KHz.

  • Digital Echo 20 - 400 Mili Sec.

  • Mic.Input 2K Ohms. Gain: -10 dB to -50 dB. S/N Ratio 70 dB. Distortion 0.01%.

  • 30mm Fader for each Channel. Un-balanced Output Connector.

  • 3 Band Active EQ on each Channel (Low, Mid & High).

  • 2 AUX send (Pre-fader & Post-fader), level & Pan Control on each Channel.

  • Output Metering 10 segment LED. Stereo RCA Output for Recording.

  • Power Supply: 11VA Max @ AC 220V / 50 Hz (External Adapter).

  • Dimension: 465 (W) x 355 (D) x 105 (H) mm.

  • Weight: 4.800 kg. (approx.)
