Audio Mixer

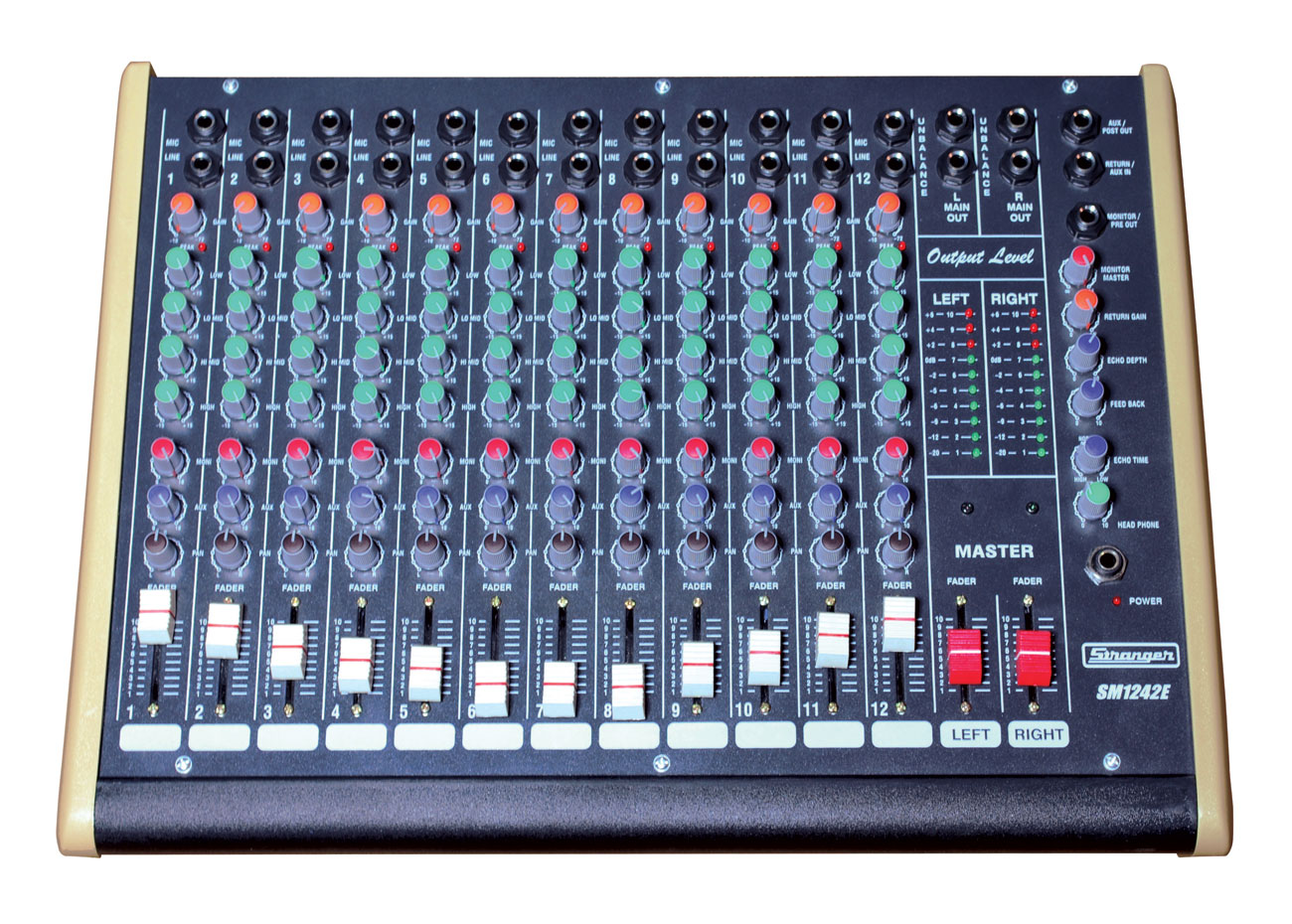

SM1242E (12 Channels Audio Mixer)


1

Specifications:

  • Un-Balanced (Input & Output) Echo Mixer.

  • Frequency Response 25 Hz - 20 KHz.

  • Digital Echo 20 - 400 Mili Sec.

  • 30 mm Long Taper Fader for each Channel.

  • Mic Input 2K Ohms. Mono Line Input 10k Ohms.

  • Gain: -10 dB to -72dB. S/N Ratio 70 dB. Distortion 0.01%.

  • 4 Band ActiveTone Control on each channel (Bass, Low-Mid, High-Mid&High).

  • 2 Aux send (Pre-fader & Post Fader) Level and Pan Control on each channel.

  • Output Metering 10 Segment LED.

  • Power Supply: 11VA / 9VA Max @ 220V AC 50 Hz± 10% (External Adapter).

  • Dimension: 465 (W) x 355 (D) x 105 (H) mm.

  • Weight: 5.200 kg.(approx.)
