Audio Mixer

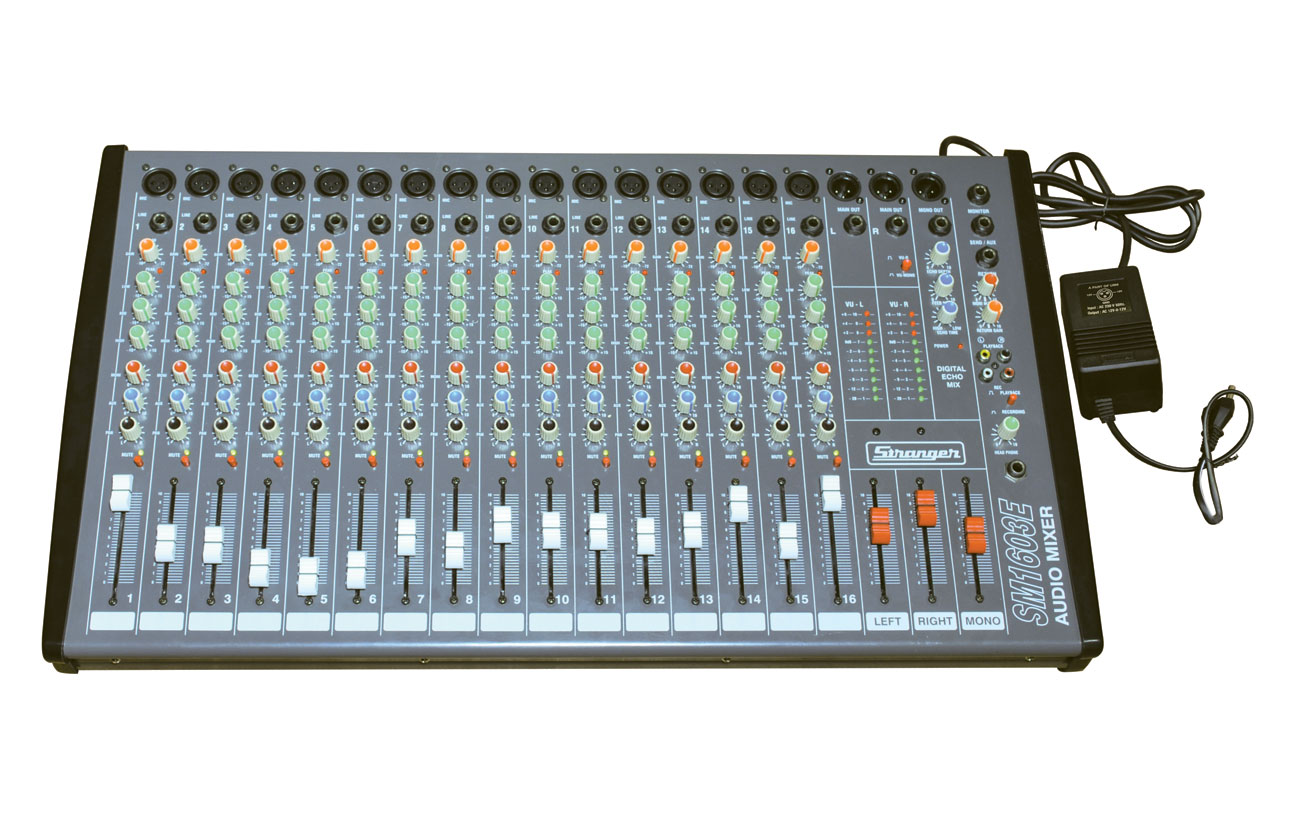

SM1603E / SM1203E


SM1603E / SM1203E

Specifications:

  • Balanced (Input &Output).Balanced XLR.
  • Frequency Response 25 Hz – 20 KHz.
  • Digital Echo 20 – 400 Mili Sec.
  • 60 mm Long Taper Faders.
  • Mic. Input 2K Ohms. Line Input 20K Ohms Balanced / 42dB.
  • Gain : -10 dB to -72 dB. S/N Ratio 89 dB. Distortion 0.01%.
  • Main Out (L+R) XLR Balanced / Unbalanced PL Socket. Stereo RCA Output for Recording.
  • 3 Band Active EQ on each Channel (Low, Mid & High).
  • 2 AUX send (Pre-fader & Post-fader) level, Pan Control, L&R, Mono & Mute Switch on each Channel.
  • Power Supply : 23VA Max / 19VA Max @ AC 220V / 50 Hz.
  • Dimension : 662 (W) x 380 (D) x 110 (H) mm. / 543 (W) x 380 (D) x 110 (H) mm.
  • Weight : 6.900 Kgs. / 5.700 Kgs.(approx.)
