Audio Mixer

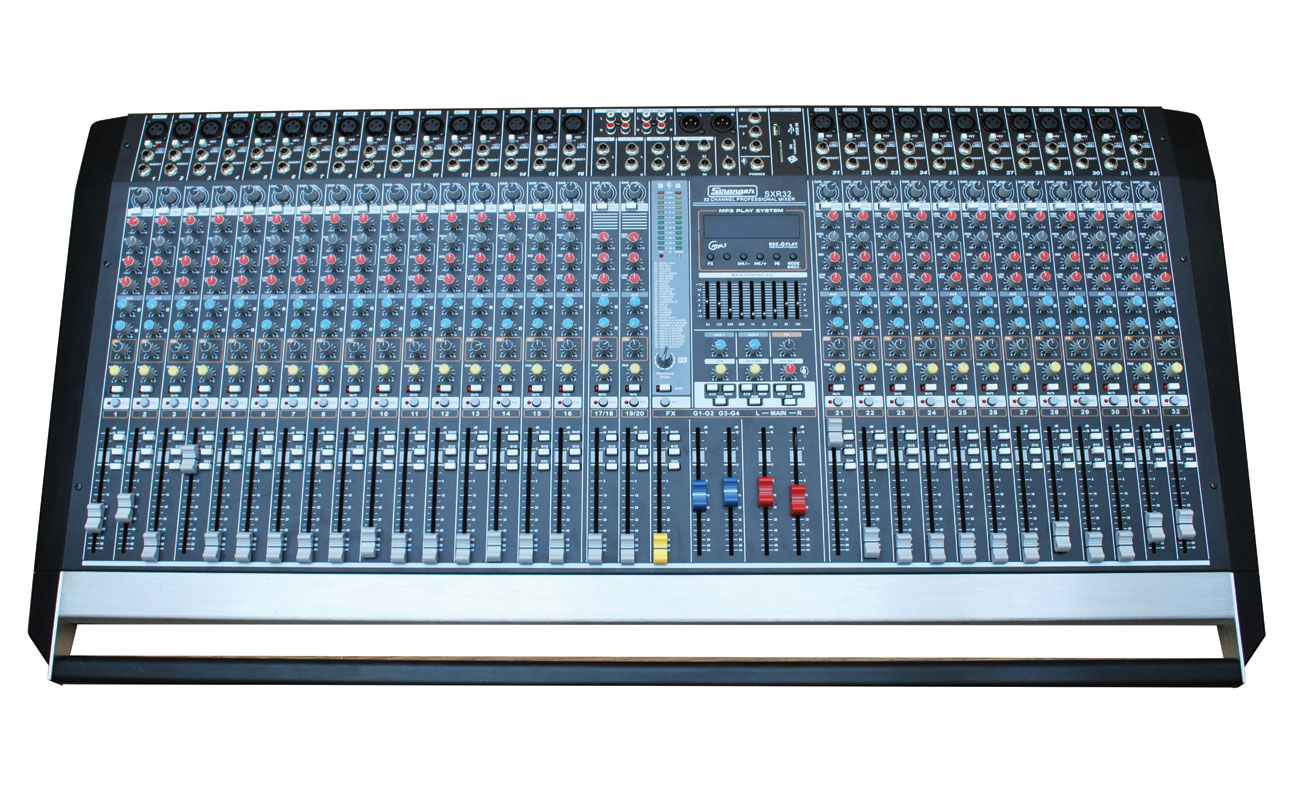

SXR32 [32 Channels Audio Mixer]


1

Specifications:

  • Un-Balanced (Input / Output).

  • 32 Channels Inputs.

  • 48 Volts Phantom Power in all channels.

  • 4 Band EQ (High, High Mid, Low & Low Mid).

  • 100 mm Long Taper Fader.

  • Frequency Response 20 Hz – 20 KHz.

  • Gain: +0 db to -60 db.

  • 4 Aux. (3 Pre fader and 1 Post fader).

  • Pan Control, Mute Switch, Group Switch & PFL Switch in each Channel.

  • Built in DSP. 99 Digital Effects.

  • 1 to 4 Channel Compressor.

  • 9, Band Stereo Graphic Equalizer.

  • MP3 Player with recording and USB.

  • Power Supply 220V AC 50 Hz (SMPS) External.

  • Dimension SXR32: 1090 (W) x 550 (D) x 150 (H) mm. Weight: 15.600 (approx.).
