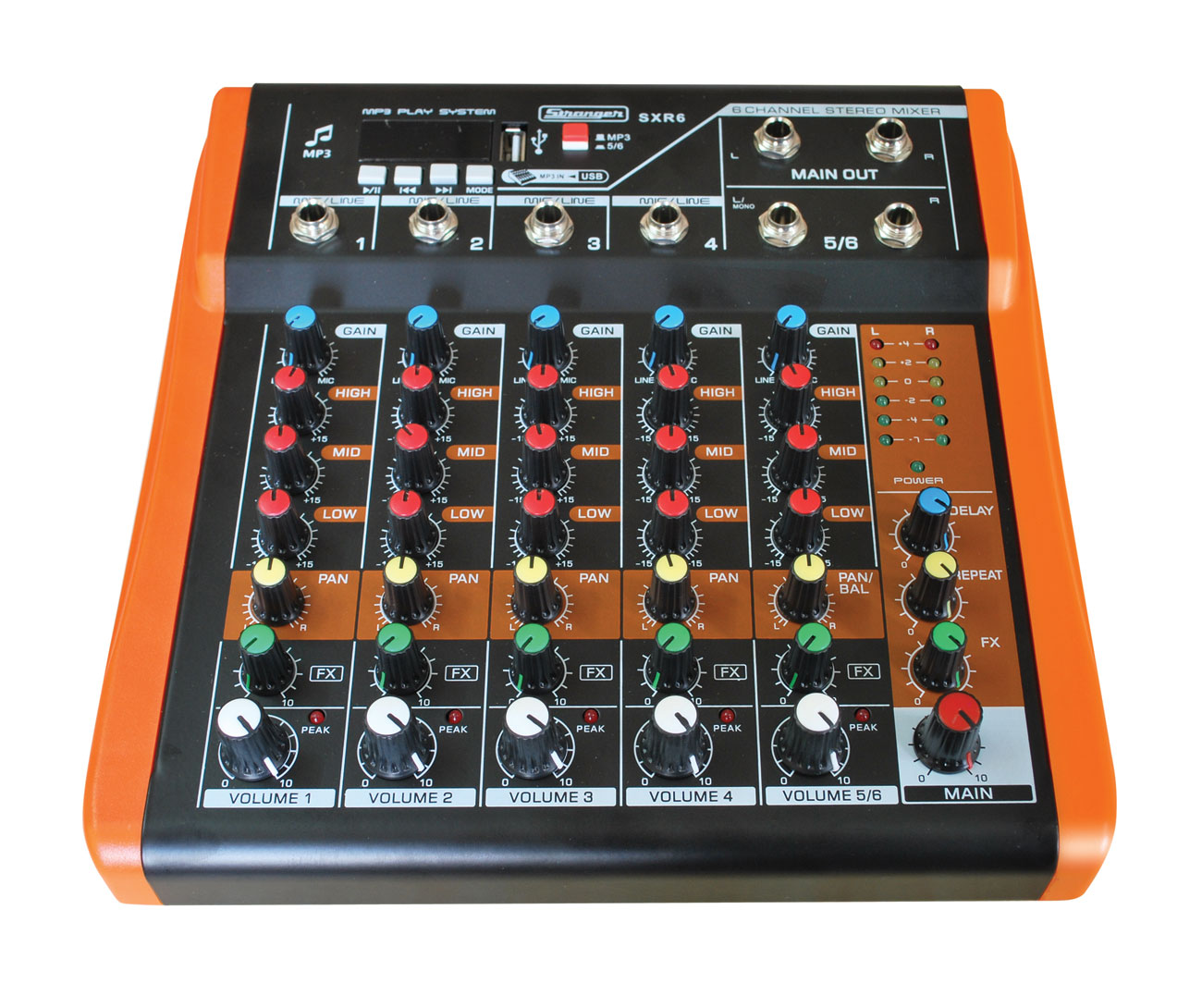

Audio Mixer

SXR6


1

Specifications:

  • 6 Channels Stereo Echo Mixer.

  • Digital Echo 20 – 400 m/s. Frequency 25 Hz – 25 KHz.

  • MP3 Player with USB Recording.

  • Input Gain: – 50 dB to 6 dB gain range with overdrive indication.

  • Output 0 dBm / 17 dBm (775mv / 5.5v).

  • Equalization: Bass, Mid & Treble + 5 dB.

  • Controls: Gain, Eq., Pan, Echo, Fader.

  • Power Supply: AC 220V 50 Hz. (External Adapter).

  • Dimension: 230 (W) x 245 (D) x 50 (H) mm.

  • Weight: 1.610 kg. (approx.)
